Autel TPMS Diagnostic Service Tool Sensor Program Diagnostic Tool

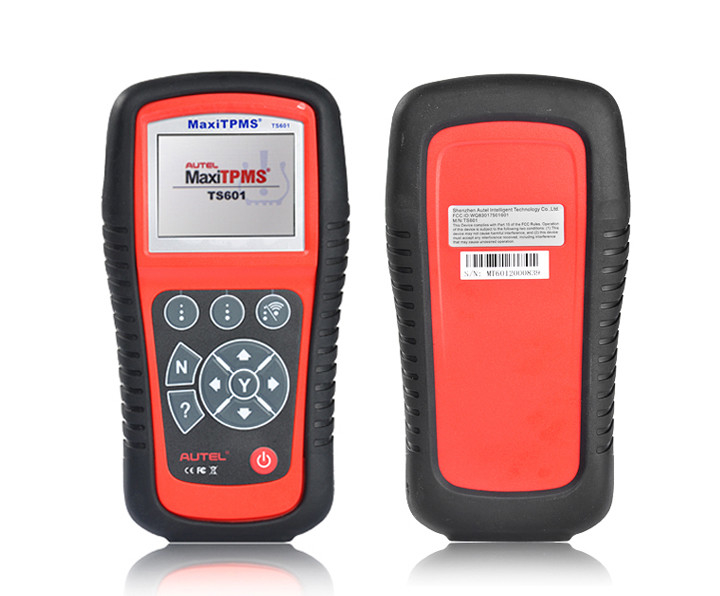

Autel MaxiTPMS TS601 TMPS ECU Code Reader Scanner Sensor Program Diagnostic Tool

The MaxiTPMS TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle's ECU. This professional tool is the best solution for tire shops and automotive workshops to perform TPMS service.

Features:
1.Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous

2.Modulated wave signals
3.Receives both 315MHz and 433MHz signals
4.Reads / writes sensor ID from vehicle ECU
5.Reads / clears codes of TPMS system and resets malfunction indicator light
6.Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
7.Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
8.Retrieves TPMS ECU information
9.Performs actuation tests and special functions
10.Programs vehicle ECU to learn sensor IDs and positions
11.Capable of programming single tires for Ch-rys-ler, Re-nault, and Ci-tro-en
12.Checks Remote Keyless Entry (Key FOB) for transmissions
13.Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
14.Pre-selection process offers faster activation and diagnostics
15.Provides visual and audible responses to confirm sensors are working properly On-screen code definitions
16.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions

17.Proper LF signal to prevent being fooled by other RF signals
18..Built-in rechargeable Li-polymer battery
19.Automatic power-off to preserve battery life
20.Multilingual support: English, French, and Spanish, etc.

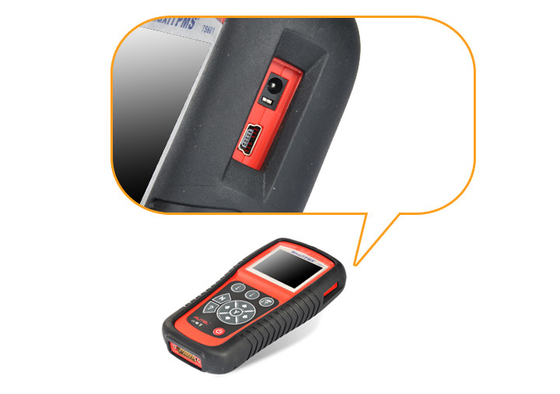

21.One year free update on the internet via USB port
22.Ergonomic design features strong housing and protective rubber boot
