Tire Pressure Monitoring System TPMS Diagnostic Service Tool TS601 Diagnostic Scanner
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Tire Pressure Sensor | Voltage: | 8-18V |
|---|---|---|---|
| Power: | 2w-5w | Applicable Models: | All Vehicles |
| Warranty: | 12 Months | Item Type: | Code Readers & Scan Tools |
| Software Update: | Yes | Language: | English, French, And Spanish, Etc |
| Display: | TFT Color Display (320 X 240 Dpi) | Retrieves: | TPMS ECU Information |
| Vehicle ECU: | Reads / Writes Sensor ID | Update: | USB Port |
| Free Update: | One Year | Preserve Battery Life: | Automatic Power-off |
| Operation: | On-screen Code Definitions |
Autel tire pressure monitoring system Retrieves TPMS ECU information TS601 Diagnostic and TPMS scanner
The MaxiTPMS® TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle's ECU.This professional tool is the best solution for tire shops and automotive workshops to perform TPMS service!
*TS601 US Version: Designed for users in the United States and Canada.
TS601 Global Version: Designed for users in all countries and regions.
MaxiTPMS TS601 Features & Functions:
1.Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous 2.or modulated wave signals
3.Receives both 315MHz and 433MHz signals
4.Reads / writes sensor ID from vehicle ECU
5.Reads / clears codes of TPMS system and resets malfunction indicator light
6.Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
7.Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
8.Retrieves TPMS ECU information
9. MaxiTPMS TS601 Performs actuation tests and special functions
10.Programs vehicle ECU to learn sensor IDs and positions
11.Capable of programming single tires .
12.Checks Remote Keyless Entry (Key FOB) for transmissions
13.Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
14.Pre-selection process offers faster activation and diagnostics
15. MaxiTPMS TS601 Provides visual and audible responses to confirm sensors are working properly.
On-screen code definitions
16.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
Proper LF signal to prevent being fooled by other RF signals
17.Built-in rechargeable Li-polymer battery
18.Automatic power-off to preserve battery life
19.Multilingual support: English, French, and Spanish, etc.
20.One year free update on the internet via USB port
21.Ergonomic design features strong housing and protective rubber boot
MaxiTPMS TS601 Specifications:
|
Display |
TFT color display (320 x 240 dpi) |
|
Power |
3.7V Li-polymer battery |
|
Operating Temperature |
0 to 50°C (32 to 122 °F) |
|
Storage Temperature |
-20 to 70°C (-4 to 158 °F) |
|
LengthWidthHeight |
202.2mm(7.96")106.7mm(4.20")37.7mm(1.48") |
|
Weight |
0.4kg (0.88lb) |

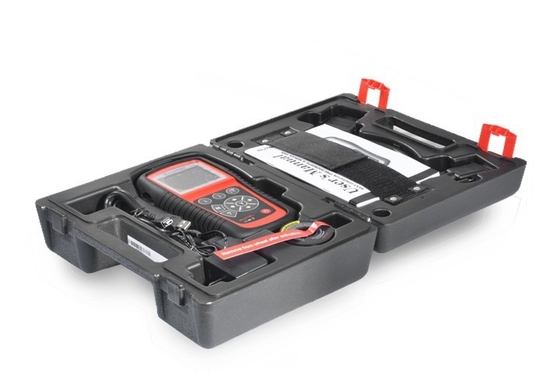

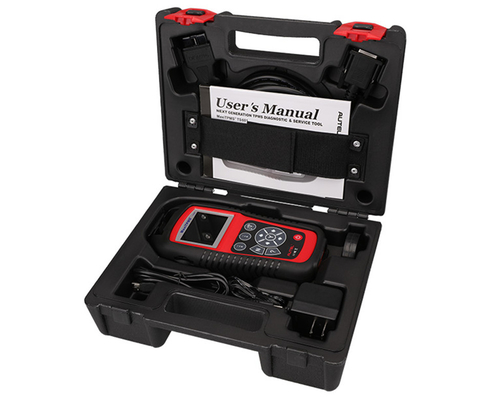

MaxiTPMS TS601 Package Contents:
· TS601 Unit
· User's Manual
· Hard Cary Case
· CD software
· USB cable
· Activation Magnet
